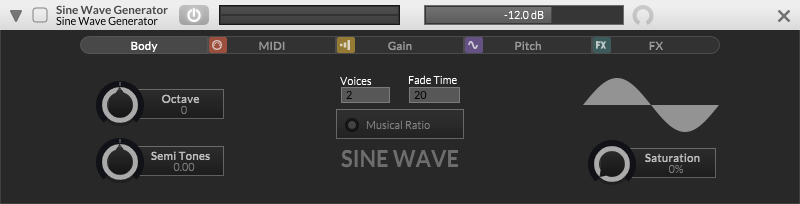

Sine Wave Generator

Type ID: SineSynth
Interface classes: RoutingMatrix

A simple and lightweight sine wave generator.


It can be used to drive a FM Synthesiser, or stacked together for Additive Synthesis or used as simple enhancement of another sound.

It has two operating modes for the pitch definition :

Musical Harmonic
in octaves / semitones. As harmonics compared to the root frequency. Use this mode for additive synthesis - it will allow to define the harmonic structure of the resulting sound more clearly.

It also has a internal Wave - Shaper effect, that allows to quickly add some harmonics to dirten up the sound.

Parameters

# ID Description
4 OctaveTranspose If the mode is set to Musical, this defines the coarse frequency.
5 SemiTones If the mode is set to Musical, this defines the fine frequency in semitones.
6 UseFreqRatio Toggles between the two modes for the pitch definition.
7 CoarseFreqRatio If the mode is set to Harmonics, this defines the harmonic index(1 being the root frequency).
8 FineFreqRatio If the mode is set to Harmonics, this defines the fine frequency(as factor).
9 SaturationAmount The saturation amount for the internal wave shaper.Use this to quickly add some harmonics.
