The Code editor

The Code Editor features three elements. A basic Script Editor with HISE/Javascript syntax highlighting, the Console for getting feedback, and the ScriptWatchTable with which you can observe the referenced variables of the connected ScriptProcessor.

Script Editor

In the top row you can connect the Code Editor to any created Scripting Modules and switch to its different callbacks.

It features a few specials to smooth your scripting experience.

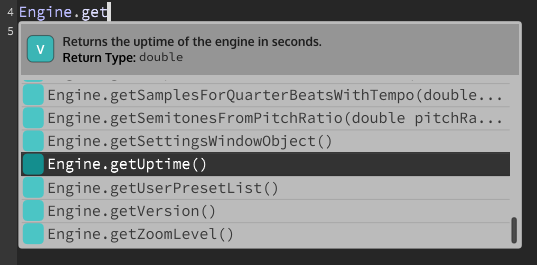

Autocomplete Popup [ESC]

The Autocomplete Popup contains all referenced variables and available API calls. Press Escape while typing, to open (and close) the popup and select the desired item using either the arrow keys + Enter or by clicking on it. If you start typing the desired API-class or referenced object and open the Autocomplete Popup, it will filter down to all applicable objects and functions.

Breakpoints

You have access to Breakpoints , too. Ctrl-Click left of the line numbers to set a breakpoint to the desired line. The breakpoint will get hit when the code line is activated in the script. It will print its feedback to the Console. With this you can check if the script actually reached the designated line and was evaluated. Delete the breakpoint with Ctrl-clicking on it again.

REPL

A Read–eval–print loop shell on the bottom of the Editor to quickly evaluate code.

Shortcuts

Shortcut Action
F5 Compile script
Escape Open and close Autocomplete Popup
Tab / Shift+Tab Increase / Decrease intendation of selection
Shift+Enter Put a semicolon at the end of line + jump to new line
Ctrl+d Select multiple occurences of the selection. ESC to quit.

Console

The Console is your feedback-system when it comes to scripting. It will show you if everything worked out, but also when it did'nt. If there is something wrong with the script it will print an error-message and show a stack-trace of the error. (You can double-click on the red error message to directly jump to the erroneous line). A right-click on the console gives you a little context menu with the possibility to clear the console.

You can also find the console in the Right Hand Panel of the Main Workingspace if you work with a
ScriptProcessor in the Module Panel.

All Console API calls print directly to the Console. The most important being the Console.print() command, which comes in handy if you want to check the expected values of your scripting.

const var x = ["Hello ", "World!"];
Console.print(x[0] + x[1]);

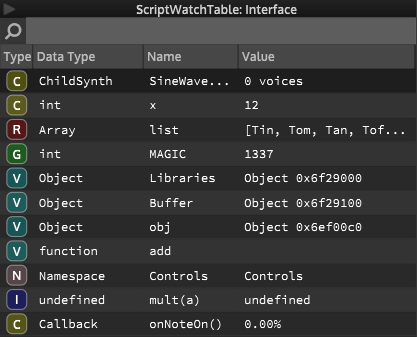

ScriptWatchTable

The Console is not the only way in HISE to observe what is going on with your script variables. On the right hand side of the Code Editor you can find the ScriptWatchTable which shows an overview of all referenced script variables and objects in the ScriptProcessor with their live values.

In the top you can find a searchbar with a fuzzy search to filter down the variables. If you double-click on an item, it will automatically jump to its definition in the Script Editor.

If you have defined a reference to a HISE Modules with a variable you can even right-click on the item to open a popup that shows the module directly in the ScriptWatchTable . This can also be used to show the content of arrays and (JSON) objects.

Types

Type Name
var - variables, functions and objects
const - constant variables
reg - registered variables
Globals.x - global variables
Namespaces - namespace wrapper
inline functions - scoped functions
